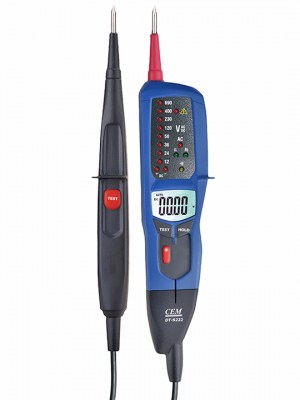

Мультиметри DT-9233

Features

DT-9233

Complies with EN 61243-3:2014

*

LED Indication Range: 12 V to 600 V dc and ac

*

LED Indication Range: 12 V to 1000 V dc and ac

*

Independent ELV indicator LED, indicates if >50 V ac/120 V dc is present even in the event of no battery power or main circuit failure

*

LCD Indication Range: 6 V to 1000 V dc and ac

*

Resistance Measurement: LCD 3½ digit (0 to 1999 Ω/1Ω resolution)

*

LCD Backlight Display HOLD: Freeze/unfreeze display with voltage or resistance measurement

*

Fixed Impedance ~200 kΩ (≤3.5 mA @ 1000 V)

*

Switchable Load by 2 pushbuttons (30 mA @ 230 V)

*

Vibration During Load (when 2 switchable load pushbuttons are pushed)

*

Single-Pole Phase Test (also operates with gloves)

*

Rotary Field Direction (also operates with gloves)

*

Continuity Test / Diode Test

*

Fashlight

*

Beeper for Continuity/Phase/ACV

*

19 mm Probe Tip distance when docked

*

CAT III 1000 V / CAT IV 600 V

*

IP64

*

Specifications

DT-9233

LEDs

Voltage range

12 V to 600 V ac/dc

*

12 V to 1000 V ac/dc

*

Resolution

±12V,24V,50V,120V,230V,400V,600V

±12V,24V,50V,120V,230V,400V,690V,1000V

*

Frequency range

0/40Hz to 400 Hz

*

Response time

≤0.5 seconds

*

Auto power on

≥12V ac/dc

*

LCD

Voltage range

6V to 1000V ac/dc

*

Resolution

±1V

*

Tolerance

±(3%rdg + 5digits)

*

Frequency range

0/40Hz to 400 Hz

*

Response time

≤1 seconds

*

Auto power on

≥6V ac/dc

*

Voltage detection

Automatic

*

Polarity detection

Full range

*

Range detection

Automatic

*

Internal basic load impedance Peak current

Maximum 3.5mA at 1000 V 200 kΩ/1s<3.5mA(no RCD tripping)

*

Operation time

Duration Time = 30 seconds

*

Recovery time

Recovery Time =240 seconds

*

Switchable Load

﹣7 kΩ

*

Peak current

Is(load) = 150mA

*

RCD triping

I = 30mA @ 230V

*

Continuity Test

0 to 400kΩ

*

Accuracy

nominal resistance ﹢50%

*

Test current

≤5 μ A

*

Single-pole Phase Test

100V ac to 1000V ac

*

Frequency range

40 Hz to 60Hz

50Hz to 400Hz

*

Rotary Field Indication

*

Voltage range(LEDs)

100V to 1000V(phase to earth)

*

Frequency range

50 Hz to 60Hz

*

Resistance Measurement

0Ω to 1999Ω

*

Resolution

1Ω

*

Tolerance

±(5%rdg + 10 digits) @ 20℃

*

Temperature coefficient

±5 digits/10K

*

Test current

≤30μA

*
