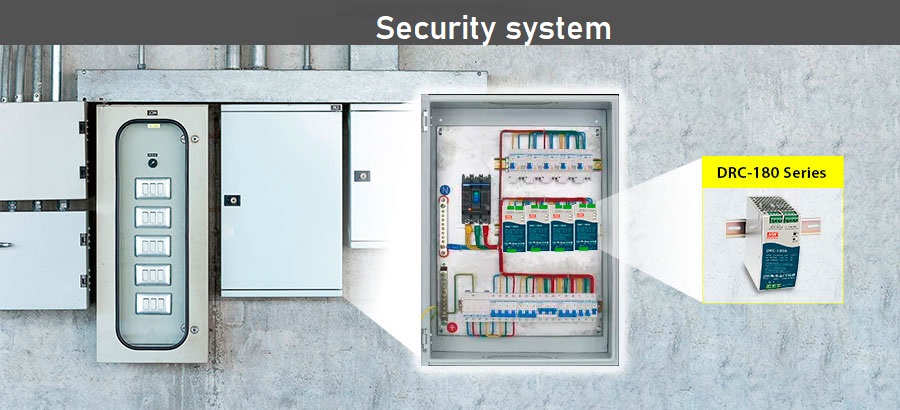

MEAN WELL power supplies DRC-40, DRC-60, DRC-100 have proven themselves well in the market of security systems and are widely used in security systems, fire safety, emergency lighting, access control systems, etc. To expand the scope of application, MEAN WELL started serial production of a new 180 W series - DRC-180. They are suitable for installation on TS-35/7.5 or TS-35/15 DIN rails. A wide input voltage range of 90~264V AC and two models with 13.8V DC and 27.6V DC output make them appropriate for most applications. At the output, the security power supply unit has 2 channels: the main one (CH1) for powering the equipment and an additional one (CH2) that can charge the battery at the same time. In addition, they have an AC OK indicator, a low battery alarm and together with an external battery can form a DC-UPS system.
Main characteristics and advantages of 180w power supply:
- Universal range of input voltages 90~305 V AC with PFC function;
- Case without a fan, cooling by free air convection;
- Operating temperature from -20 to +70 °C;
- "AC OK" indicators and low battery alarm (RELAY);
- Protection against short circuit, overvoltage, overload, overheating, low battery voltage (disconnect) and wrong polarity when connecting the battery (fuse);
- Can be installed on a TS-35/7.5 or TS-35/15 type DIN rail;
- Working altitude up to 5000 m;
- Safety certificates UL / CUL / DEKRA / RCM/ EAC / CB / CE / UKCA;
- Dimensions (WxHxD): 63x125.2x115 mm;
- 3 years warranty.

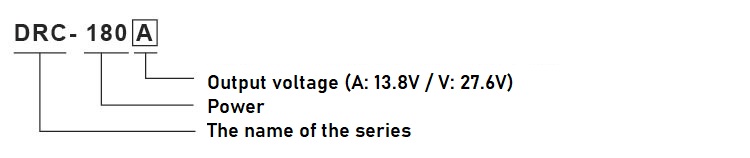

Coding models:
