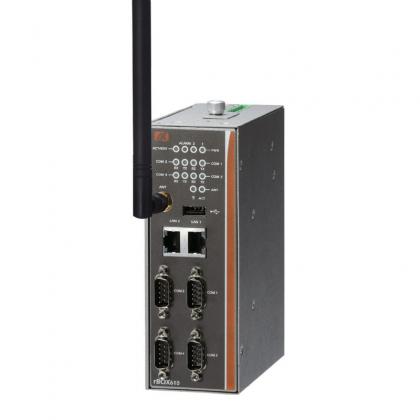

rBOX610

Цвет корпуса

Sliver-Black

Материал корпуса

Extruded aluminum and heavy-duty steel, IP40

Процессор

iMX-287, ARM9 16-bit RISC CPU, 454 MHz

Системная плата

Q7M100

Системная память

1 x DDR2 128 MB SDRAM onboard

Порты ввода/вывода

Serial Port

4 x RS-232/422/485 (COM 1 ~ 4) COM 1~3 with TX/RX/RTS/CTS signals RS-232/422/485 interface select by software

LAN

2 x 10/100Mbps Ethernet

Magnetic isolation protection 1.5KV

USB

1 x USB 2.0 USB power distribution control by

software

CAN

2 CAN 2.0 B (Phoenix connector, nonisolation)

Meets ISO 11898 standard Software control termination resistor 120 ohm can high speed up to 1Mbit/s for transmit/receive

DIO

1 x DIO (4-IN/4-OUT)

DI :

Input channels : 4, source type

Input voltage : 0 to 30VDCDigital input

levels for dry contacts :

-Logic level 0: close to GND

-Logic level 1: open

Digital input levels for wet contacts :

-Logic level 0: +10V to +24V (DI to COM-)

-Logic level 1: +3V max.

DO :

Output channels : 4, sink type

Output current: Max. 200 mA per

channel

On-state voltage : 24VDC nominal, open

collector to 30V

Optical isolation protection 2 KV

Console Port

DB9 connector

For user setting with debug

RTC

Batteryonboard

Provides power for the internal real time clock & calendar

Ideal for vibration environment & reduces maintenance efforts

Power Input

2 power paths with terminal block

Alarm Contact

One relay output with current 0.5A@30VDC

Wireless

1 x Mini Card (supports USB interface on 3G/GPRS)

1 x SIM socket by outside access and is

easy plug/pull

Контрольный таймер

WDT 1: one step is 1 sec, 255 levels

Индикация

System

Power, Alarm, Ready/Active, COM (TX,

RX), Wireless

Alarm

DC PWR1 or PWR2 is lost

Накопители

1 x eMMC 4 GB onboard (for boot disk)

Supports 1 x SDHC Card (easy-to-access, for store only.)

Монтаж

Din-rail, Wall mount

Источник питания

2 power paths

Power Input Range

12-48VDC

Power Protection

DC Version:

OVP (Over voltage protection)

UVP (Under voltage protection)

Reverse protection

Температура эксплуатации

-40°C~ +70°C (-40°F ~ +158°F)

Температура хранения

-45°C~ +85°C (-49°F ~ +185°F)

Относительная влажность

5% ~ 95%

Виброусточивость

5G @ 10-150Hz, amplitude 0.35ms

Вес (нетто / брутто)

TBD

Размеры

55 mm(2.16") (W) x 155 mm (6.10") (D) x 110 mm (4.33") (H)

Поддержка ОС

Linux (Pre-installed)

Сертификаты

FCC Part 18

Heavy Industrial CE
